Sugar Association Offices Competition Bid

1998 | Conceptual
Umhlanga, KwaZulu-Natal

Stauch Vorster Architects - Durban
Team: Ivor Daniel, Paul Lewis

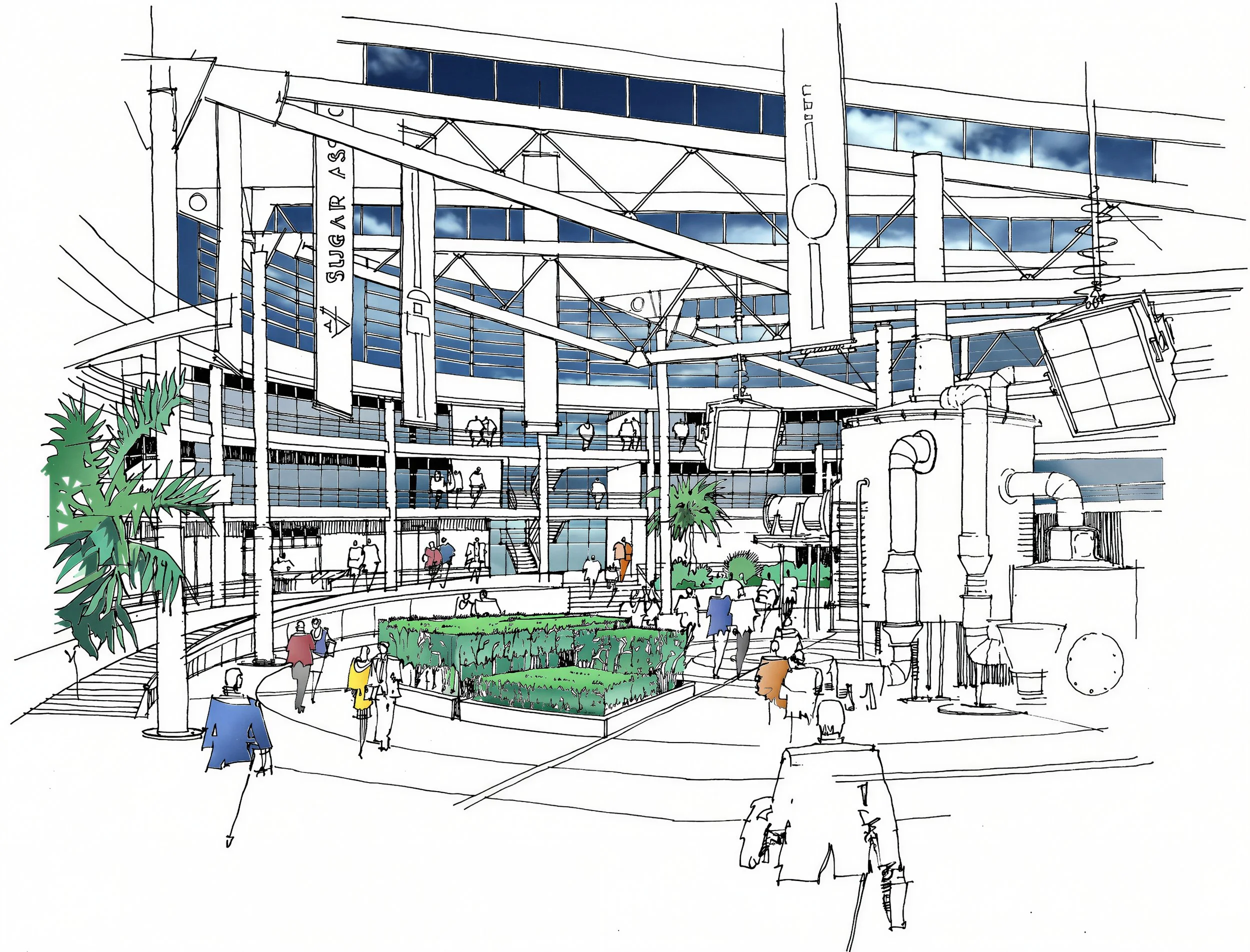

The Sugar Association Offices competition entry proposed a low-energy institutional complex combining administrative offices, a visitor and education centre, and shared canteen facilities. The design sought to accommodate diverse industry functions while demonstrating environmental responsibility in response to a hot, humid climate.

The primary challenge was to create a comfortable, energy-efficient workplace and public facility that minimised reliance on mechanical cooling. A clear organisational framework was also required to integrate the various programme elements into a cohesive whole.

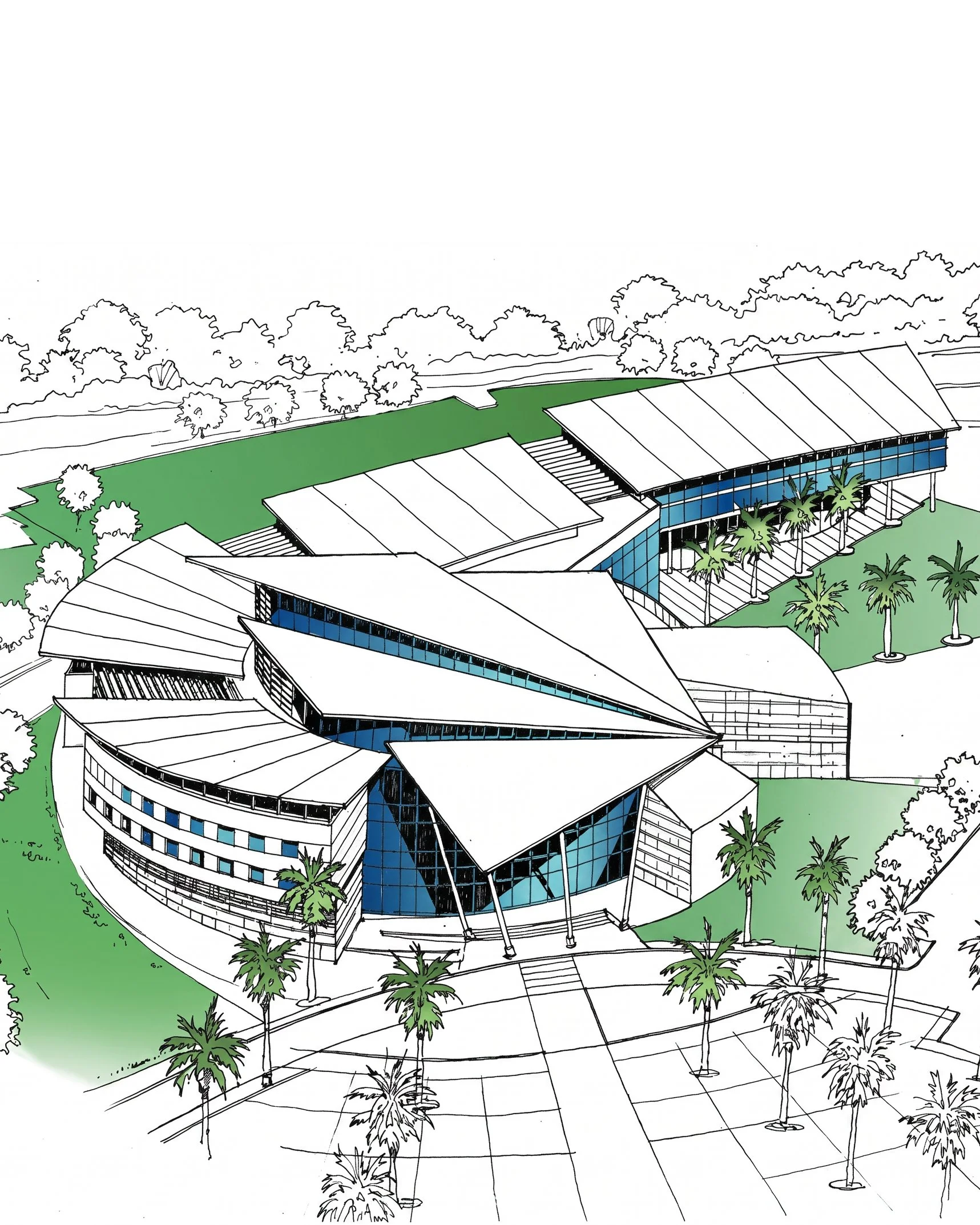

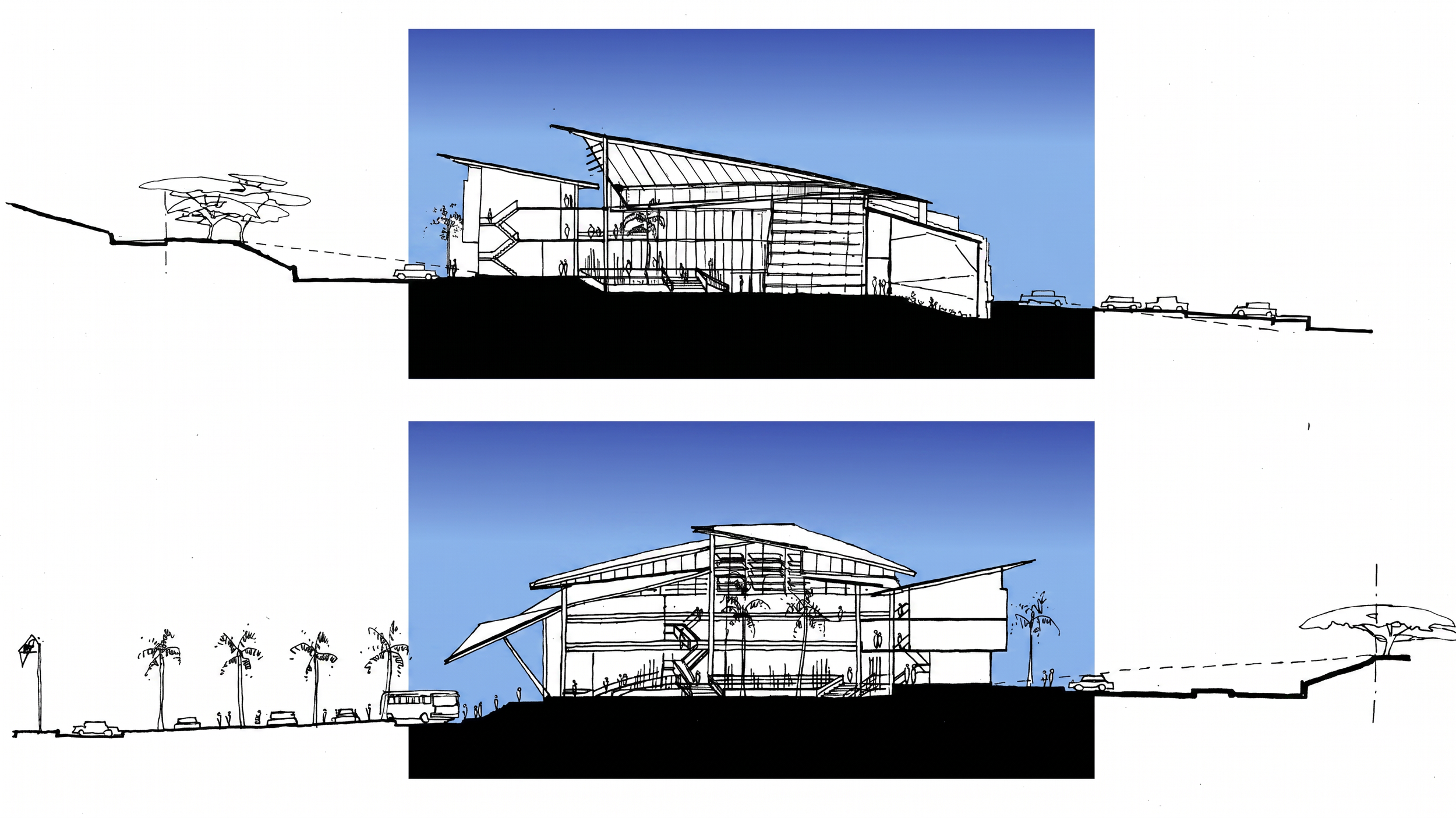

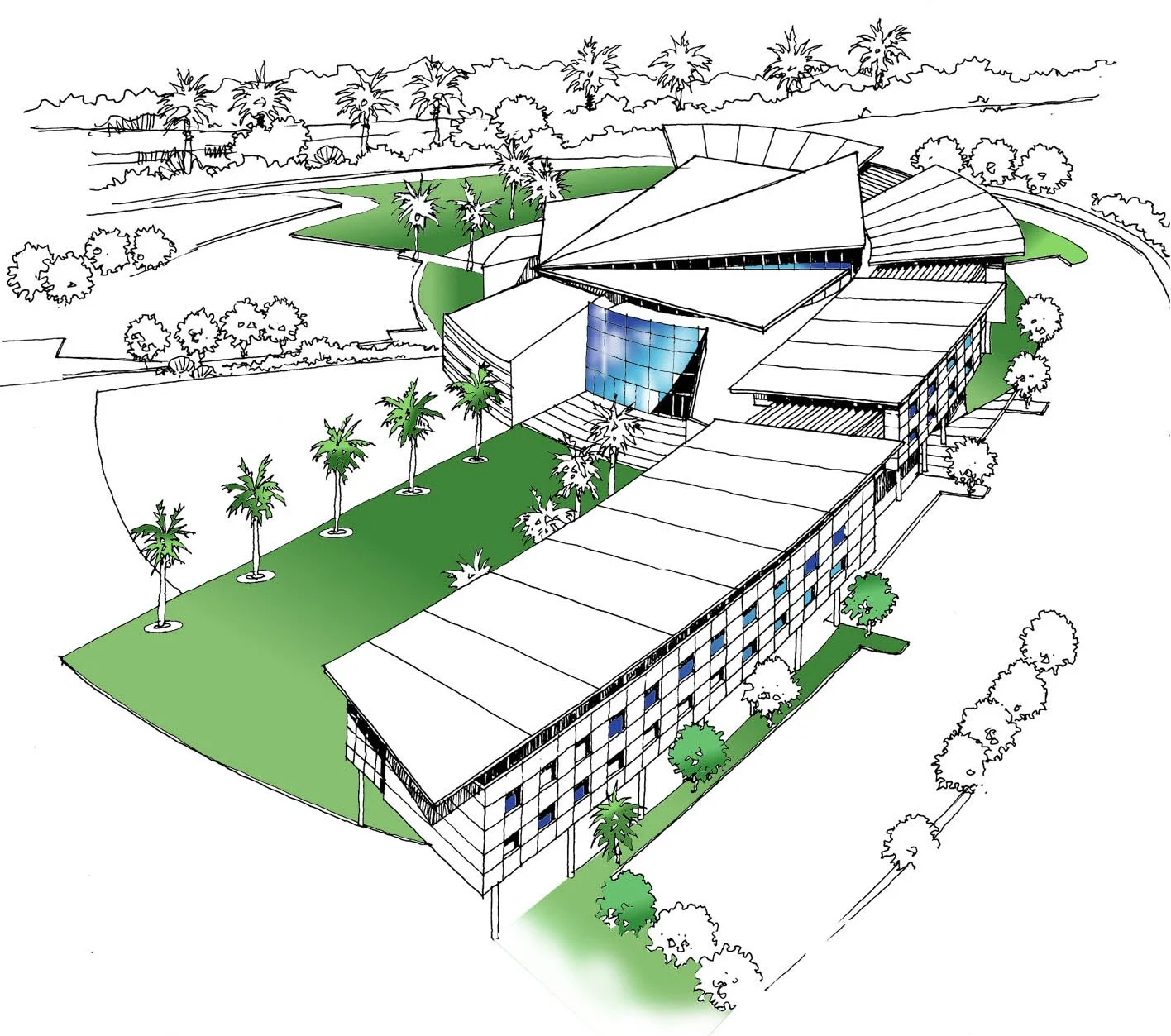

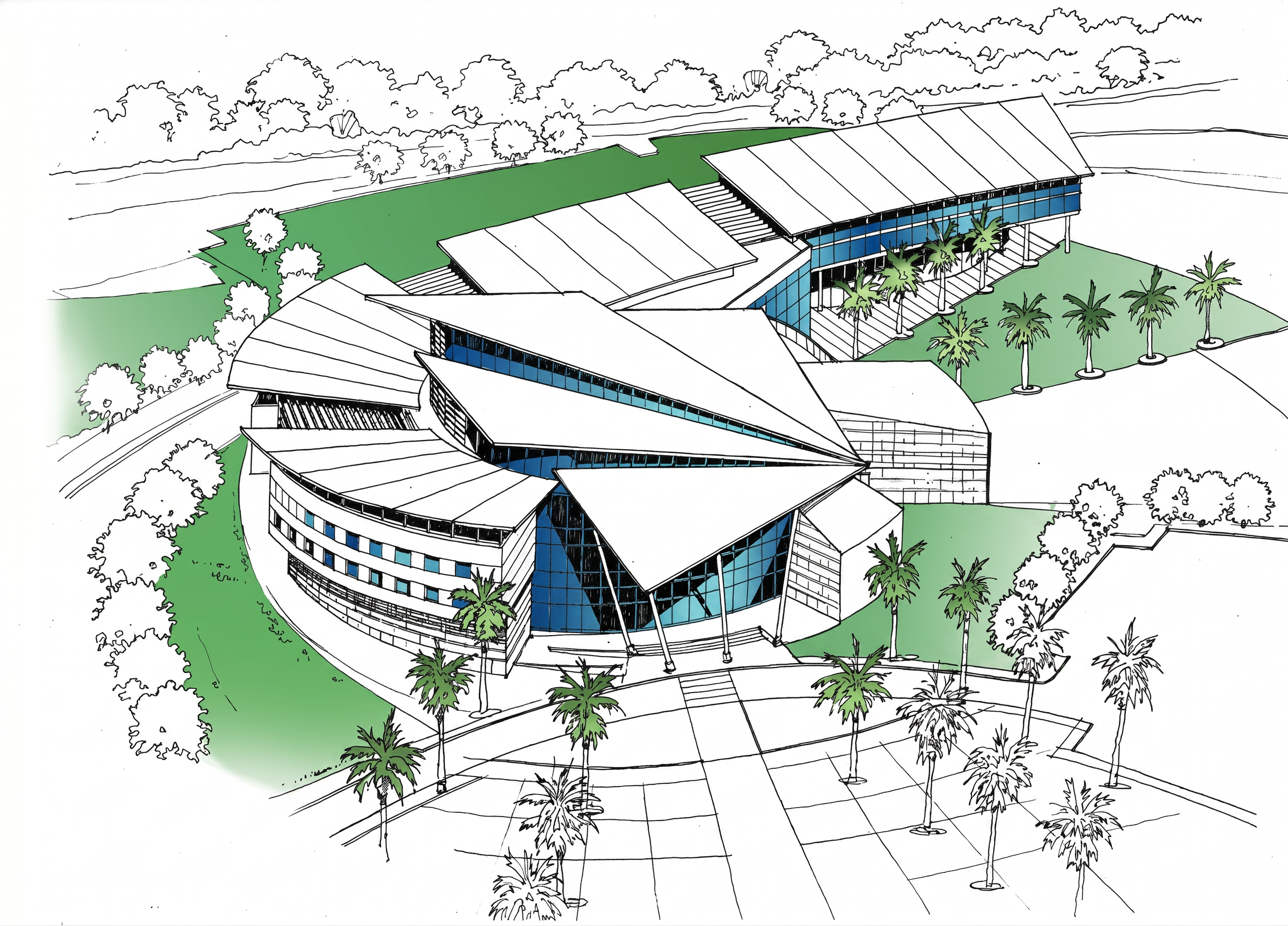

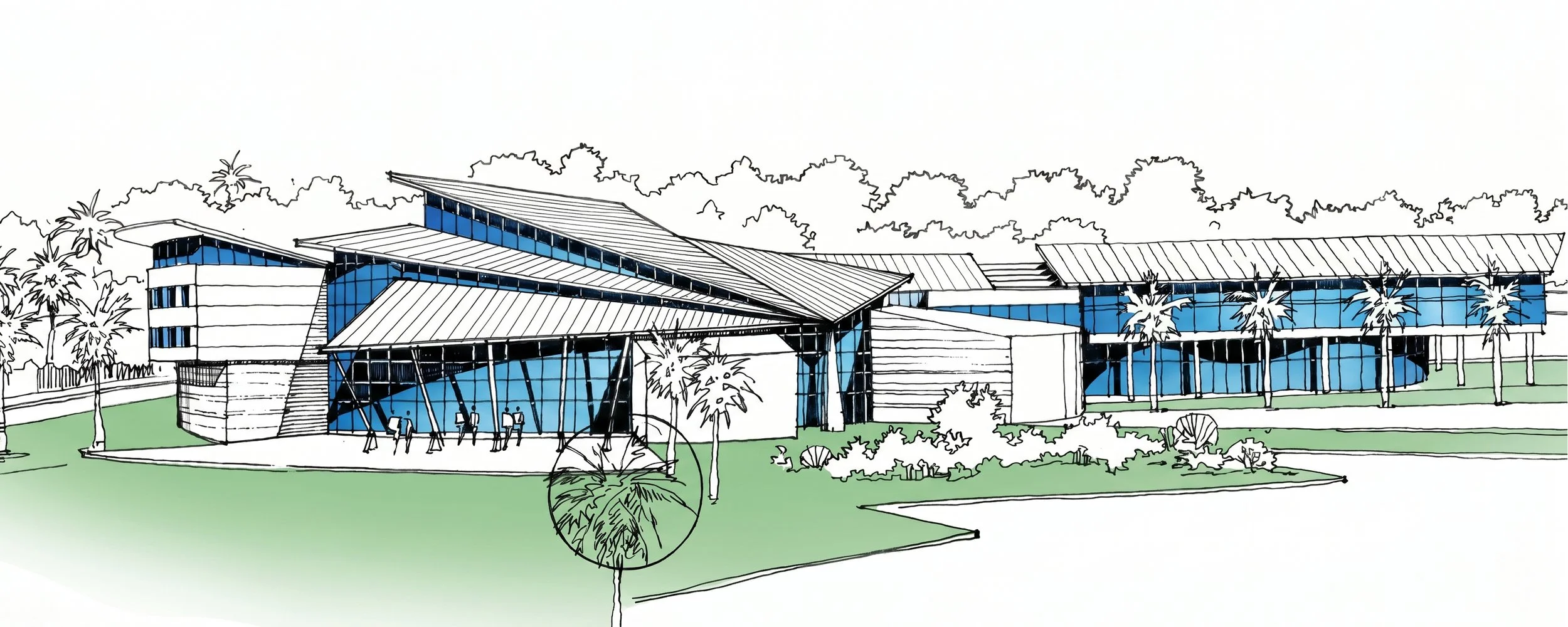

The design is centred on a series of umbrella roof structures that provide deep shade, reduce solar gain and enable large, naturally ventilated interior spaces. Building orientation optimises daylight and prevailing breezes, supported by solar screening, insulated wall systems and passive ventilation strategies. The roof becomes the defining architectural element, shaping both spatial organisation and environmental performance.

The proposal demonstrates low-energy design through climate-responsive form, orientation and material selection, creating a cohesive institutional complex that integrates administrative, educational and public functions in a sustainable architectural solution.
